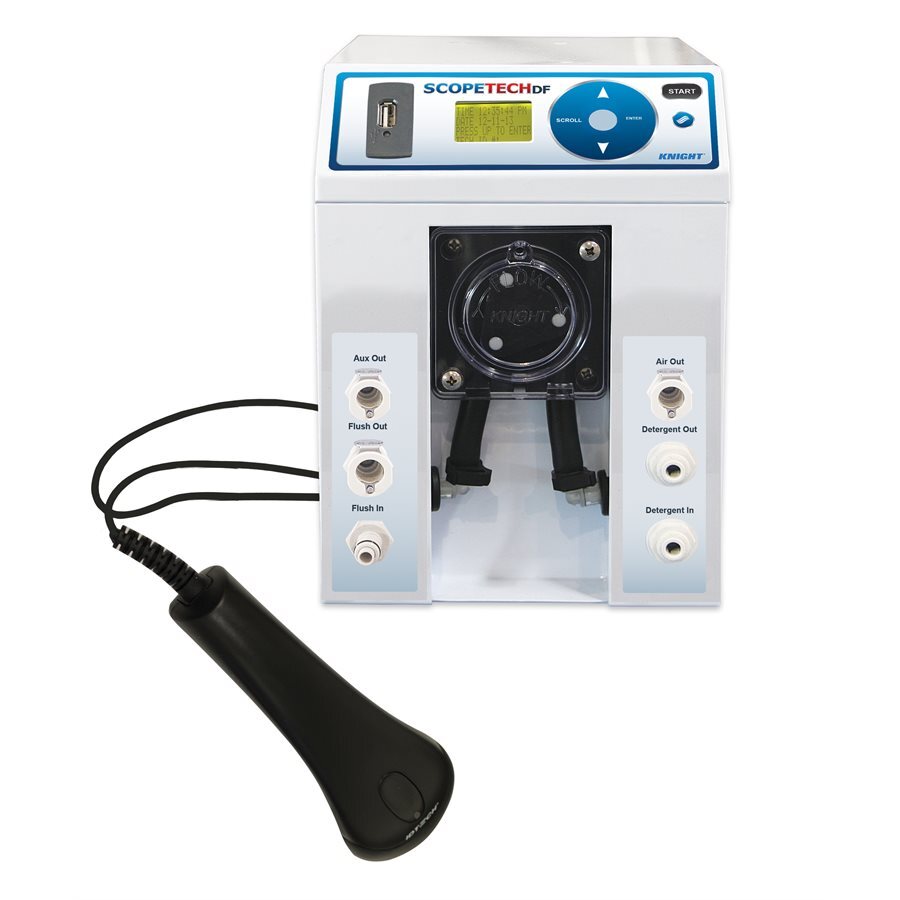

ScopeTech™ DF: 4-in-1 Flexible Endoscope Cleaning System

The ScopeTech™ DF 4-in-1 flexible endoscope cleaning system promotes compliance with reprocessing requirements while reducing the time it takes to reprocess a scope. ScopeTech DF provides a step-by-step cleaning process that the technician can follow, tracks every scope cleaned between pre-clean and high-level disinfection, and saves processing reports for quality management and surveyor audits.

ScopeTech DF works with flexible endoscopes including Olympus, Pentax, Karl Storz, and Fujinon.

Smart, Space-Saving Design Replaces Multiple Systems

• Replaces light source system, detergent doser, and flushing system
• Replaces hand leak tester, detergent pump bottle, and hand syringing

Track Every Flexible Scope Cleaned Between Pre-Clean and High Level Disinfection

• Barcode Scanner Records Scope Serial Number and Technician I.D.s
• Date and Time Stamp
• Leak Test Duration
• Detergent Volume
• Detergent Flush, Rinse, and Water Purge Time
• Error Messages

Ensure Compliance with Cleaning Requirements

• Step-by-Step Cleaning Process Management
• Operators Follow Programmed Procedure to Assure Consistency in Cleaning
• Achieve Consistent Cleaning Results
• Shorten the Time it Takes to Reprocess
• Easy to Train New Technicians
• Easy to Comply to Regional Requirements

Automated Reports for Quality Management and Surveyor Audits

• Optimized for Higher Cleaning Performance
• Precision flow meters assure chemical dosing is precise and scope channels are properly flushed
• Precise detergent dosing with optional temperature sensing for optimal chemical performance
• Dual channel flushing provides full flow through main and elevator wire channels
• Cycle validation summary for scopes and any error messages

Dimensions / Weight

• 9 ¾ H x 7 1/8” W x 8 ¾” D
• 24.76 cm x 18.09 cm x 22.22 cm

Cabinet Materials; Case Rating

• #304 Stainless Steel, Powder Coated;
• IP-55

Flow Rates

• Flush Pump – .3 GPM (1.13 LPM)
• Dosing Pump – 10 oz./min (29.6 ml/min.)

Flush Pump Suction

• Maximum suction height = 24”/61 cm

Inflation Test Pressure

• 2.5-3 PSI (.17 - .27 bar)

Power Supply/Voltage

• Wall Mount Type, IN: 100-240 Volts AC
• 0.8A 50-60 Hz, Out: 24 Volts DC 1.25A

Chemical Compatibility

• Flush Pump, Flush Tubes, Hook Ups –
  Industry standard enzymatic and other
  detergents in diluted form. Do not use
  Isopropyl Alcohol with the flush pump.
• Dosing Pump – Industry standard
  enzymatic and other detergents.

Unit Weight

• 13.3 lbs. (6.06 Kg)

Temperature Sensor

• Max temperature = 160º C

Fuse

• 2 Amp

Approvals

• CSAus, CE Standard: CAN/CSA-C22.2 No.  61010-1
• UL Std. No. 61010-1 IEC 61010-1

Product Testing

• CSA International, Irvine CA
