PMP Series

PART-NUMBER:8457830-01, 8457760-01, 8457765-01, 8457765-21, 8457830-02, 8457830-21
Food and Beverage

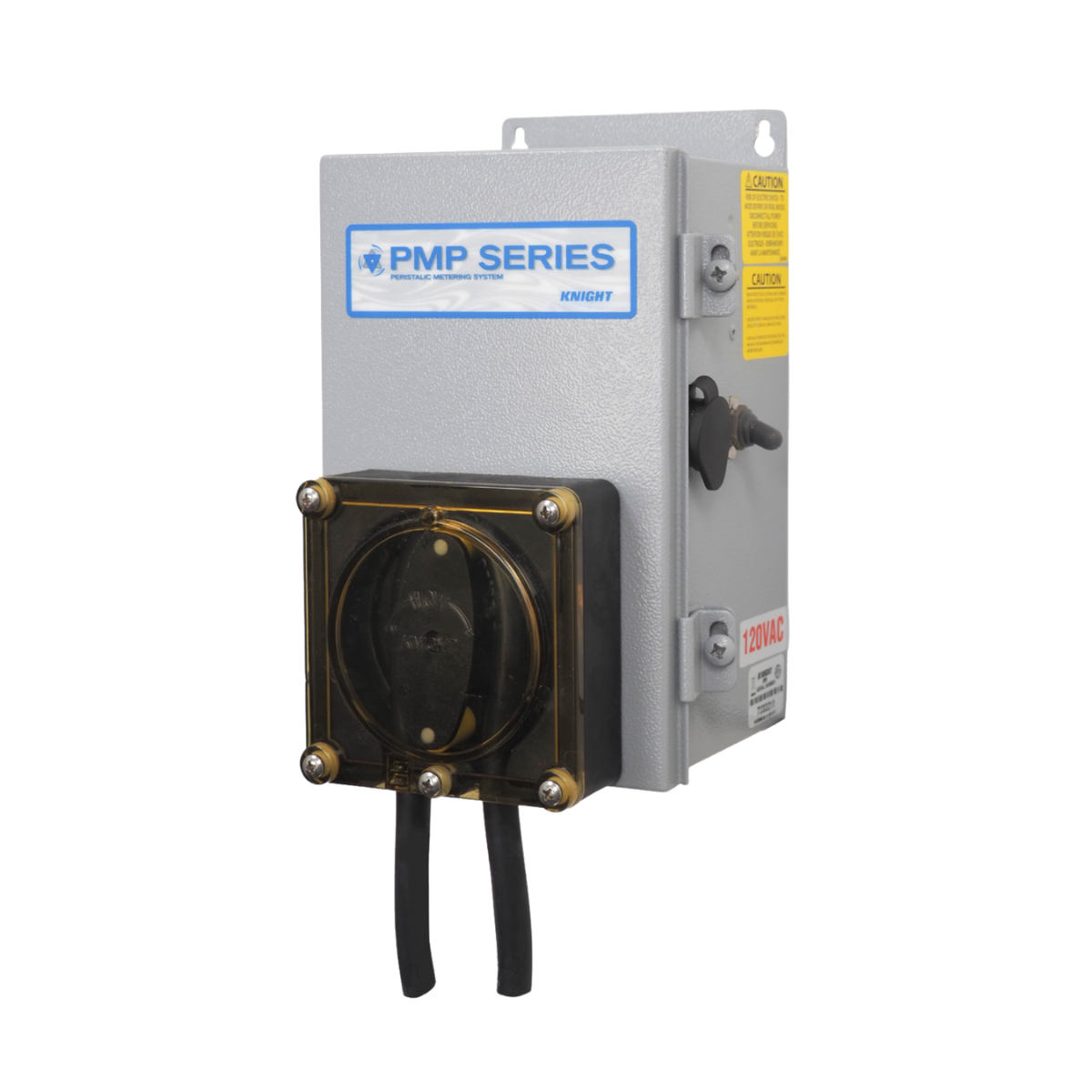

The PMP Series Peristaltic Metering Pump provides chemical control for food processing plants, cooling towers, spray washers, bottling plants, grease traps, sewage treatment, conveyor lubrication, boilers, and more. The peristaltic pump uses the rotation of an elliptical block to cause a vacuum and rapid self priming. The pump is mounted on a stainless steel watertight case that is designed to withstand the harsh environments of industrial applications.
PMP Series
  • Valveless Pump
  • Microprocessor Based Controls
  • Stainless Steel Watertight Case
  • Self Priming
  • Fixed Speed or Variable Speed
  • Wide Range of Flow Rates
  • Pumps up to 30 PSI
PMP 500 Series - Voltages Available: 115/230 VAC, 50/60 HZ
AC Fixed Speed (up to 4.4 GPH)

Notes: Add to Part No. (-01) for 115V/60Hz, (-02) for 230V/60Hz, (-03) for 230V/50Hz

MODEL PART # DESCRIPTION
PMP-530 8452134 TUBE: T-50E MAX PSI: 30 ML/MIN: 70 OZ/MIN: 2.4 GPH: 1.1
PMP-5100 8453142 TUBE: T-50E MAX PSI: 30 ML/MIN: 275 OZ/MIN: 9.3 GPH: 4.4
DC Variable Speed (up to 5.3 GPH)
MODEL PART # DESCRIPTION
PMP-515-3VS 8453405 TUBE: T-53E MAX PSI: 30 ML/MIN: 26 OZ/MIN: .88 GPH:.41
PMP-515VS 8453410 TUBE: T-50E MAX PSI: 30 ML/MIN: 43 OZ/MIN: 1.45 GPH:.68
PMP-560VS 8453415 TUBE: T-50E MAX PSI: 30 ML/MIN: 152 OZ/MIN: 5.10 GPH:2.65
PMP-5110VS 8453425 TUBE: T-50E MAX PSI: 30 ML/MIN: 332 OZ/MIN: 11.2 GPH:5.3

PMP 800 Series - Voltages Available: 115/230 VAC, 50/60 HZ
AC Fixed Speed (up to 19 GPH)
Notes: Add to Part No. (-01) for 115V/60Hz, (-02) for 230V/60Hz, (-03) for 230V/50Hz
MODEL PART # DESCRIPTION
PMP-8120A 8457143 TUBE: T-50E MAX PSI: 30 ML/MIN: 670 OZ/MIN:23
GPH:11
PMP-8120B 8457830 TUBE: T-66E MAX PSI: 30 ML/MIN: 1180 OZ/MIN:40
GPH: 19
DC Variable Speed (up to 16.8 GPH)
Notes: Add to Part No. (-01) for 115 Volts, (-02) for 230 Volts with built-in transformer.
MODEL PART # DESCRIPTION
PMP-8110VS
 8453440 TUBE: T-50E MAX PSI: 30 ML/MIN: 614 OZ/MIN:21 GPH:9.7
PMP-8110BVS 8453445 TUBE: T-66E MAX PSI: 30 ML/MIN: 1081 OZ/MIN:36
GPH: 16.8

PMP 900 Series - Voltages Available: 115/230 VAC, 50/60 HZ
AC Fixed Speed (up to 105 GPH)
Notes: Add to Part No. (-01) for 115V/60Hz, (-02) for 230V/60Hz, (-03) for 230V/50Hz
MODEL PART # DESCRIPTION
PMP-9130 8457760 TUBE: T-86E MAX PSI: 30 ML/MIN: 4400 OZ/MIN:149 GPH:70
PMP-9270 8457765 TUBE: T-86E MAX PSI: 30 ML/MIN:6600 OZ/MIN: 223 GPH: 105
ELECTRONIC CONTROL OPTIONS (For PMP AC Pumps Only)
MODEL PART # DESCRIPTION
KTM-600 7142326 Microprocessor electronic variable limiting timer/standard on time, 0-12 min. pump activates by a momentary switch or electrical signal. Built-in lock-out timer and push button programming standard. Add to pump P/N (-21) for 115V/60Hz or (-22) for 230V/60Hz, (-23) for 230V/50Hz.
CT-600 7141600 Microprocessor repeating cycle timer. Selectable off period from 0 to 60 minutes. Pump on time adjustable from 0 to 12 minutes. Add to pump P/N (-31) for 115V/60 Hz or (-32) for 230V/60 Hz, (-33) for 230V/50 Hz.
RMS-100 7640616 Remote Momentary Switch Box Assembly (Nema 4 rated plastic)
MS-101 1900452 Case-mounted Pump Activator Switch w/ silicone boot & green start button.



Product Line Details
  • Valveless Pump
  • Microprocessor Based Controls
  • Stainless Steel Watertight Case
  • Self Priming
  • Fixed Speed or Variable Speed
  • Wide Range of Flow Rates
  • Pumps up to 30 PSI
Technical Data
PMP 500 Series - Voltages Available: 115/230 VAC, 50/60 HZ
AC Fixed Speed (up to 4.4 GPH)

Notes: Add to Part No. (-01) for 115V/60Hz, (-02) for 230V/60Hz, (-03) for 230V/50Hz

MODEL PART # DESCRIPTION
PMP-530 8452134 TUBE: T-50E MAX PSI: 30 ML/MIN: 70 OZ/MIN: 2.4 GPH: 1.1
PMP-5100 8453142 TUBE: T-50E MAX PSI: 30 ML/MIN: 275 OZ/MIN: 9.3 GPH: 4.4
DC Variable Speed (up to 5.3 GPH)
MODEL PART # DESCRIPTION
PMP-515-3VS 8453405 TUBE: T-53E MAX PSI: 30 ML/MIN: 26 OZ/MIN: .88 GPH:.41
PMP-515VS 8453410 TUBE: T-50E MAX PSI: 30 ML/MIN: 43 OZ/MIN: 1.45 GPH:.68
PMP-560VS 8453415 TUBE: T-50E MAX PSI: 30 ML/MIN: 152 OZ/MIN: 5.10 GPH:2.65
PMP-5110VS 8453425 TUBE: T-50E MAX PSI: 30 ML/MIN: 332 OZ/MIN: 11.2 GPH:5.3

PMP 800 Series - Voltages Available: 115/230 VAC, 50/60 HZ
AC Fixed Speed (up to 19 GPH)
Notes: Add to Part No. (-01) for 115V/60Hz, (-02) for 230V/60Hz, (-03) for 230V/50Hz
MODEL PART # DESCRIPTION
PMP-8120A 8457143 TUBE: T-50E MAX PSI: 30 ML/MIN: 670 OZ/MIN:23
GPH:11
PMP-8120B 8457830 TUBE: T-66E MAX PSI: 30 ML/MIN: 1180 OZ/MIN:40
GPH: 19
DC Variable Speed (up to 16.8 GPH)
Notes: Add to Part No. (-01) for 115 Volts, (-02) for 230 Volts with built-in transformer.
MODEL PART # DESCRIPTION
PMP-8110VS
 8453440 TUBE: T-50E MAX PSI: 30 ML/MIN: 614 OZ/MIN:21 GPH:9.7
PMP-8110BVS 8453445 TUBE: T-66E MAX PSI: 30 ML/MIN: 1081 OZ/MIN:36
GPH: 16.8

PMP 900 Series - Voltages Available: 115/230 VAC, 50/60 HZ
AC Fixed Speed (up to 105 GPH)
Notes: Add to Part No. (-01) for 115V/60Hz, (-02) for 230V/60Hz, (-03) for 230V/50Hz
MODEL PART # DESCRIPTION
PMP-9130 8457760 TUBE: T-86E MAX PSI: 30 ML/MIN: 4400 OZ/MIN:149 GPH:70
PMP-9270 8457765 TUBE: T-86E MAX PSI: 30 ML/MIN:6600 OZ/MIN: 223 GPH: 105
ELECTRONIC CONTROL OPTIONS (For PMP AC Pumps Only)
MODEL PART # DESCRIPTION
KTM-600 7142326 Microprocessor electronic variable limiting timer/standard on time, 0-12 min. pump activates by a momentary switch or electrical signal. Built-in lock-out timer and push button programming standard. Add to pump P/N (-21) for 115V/60Hz or (-22) for 230V/60Hz, (-23) for 230V/50Hz.
CT-600 7141600 Microprocessor repeating cycle timer. Selectable off period from 0 to 60 minutes. Pump on time adjustable from 0 to 12 minutes. Add to pump P/N (-31) for 115V/60 Hz or (-32) for 230V/60 Hz, (-33) for 230V/50 Hz.
RMS-100 7640616 Remote Momentary Switch Box Assembly (Nema 4 rated plastic)
MS-101 1900452 Case-mounted Pump Activator Switch w/ silicone boot & green start button.
