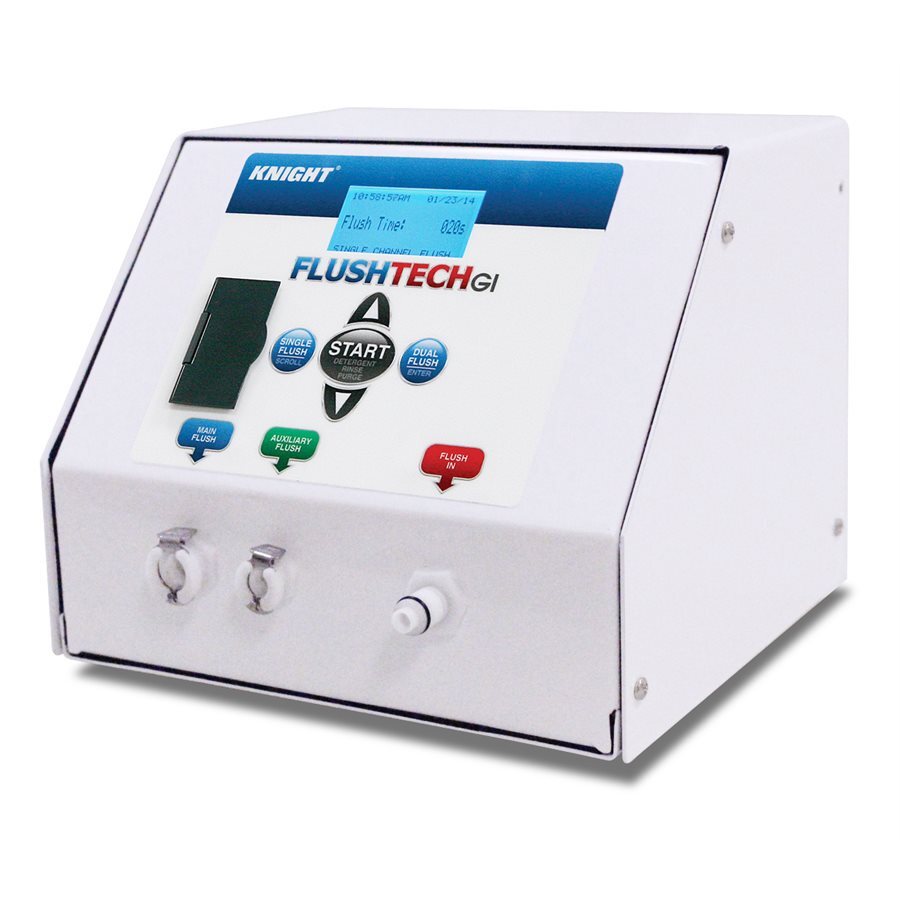

FlushTech™ GI: Automated Flushing System for Flexible Endoscopes

The FlushTech™ GI is a dual port flushing system that promotes compliance with endoscope flushing requirements while reducing the time it takes to reprocess a scope. FlushTech is an easy-to-operate and robust system for flushing detergent, rinse water, and air through all internal channels and any elevator wire channels of a flexible endoscope. FlushTech saves all processing reports for quality management and surveyor audits.

FlushTech GI works with flexible endoscopes including Olympus®, Pentax®, Karl Storz®, and Fujinon®.

Accessories

Dimensions

• 7” H X 8” W X 7” D (17.8 cm X 20.3 cm x 17.8 cm)

Case Rating

• IPXO

Flush Pump Flow Rate

• 0.75 GPM (2.84 LPM)

Flush Pump Suction

• Maximum suction height—6ft. (1.82m)

Power Supply/Voltage

• Wall Mount Type, IN: 110-240 VAC 1A 50-60 Hz Out: 12 VDC 1.5A

Chemical Compatibility

• Flush Pump—Industry standard high-level disinfectant, enzymatic and other detergents in diluted form. Do not use Isopropyl Alcohol with the flush pump.

Flush Tubes / Hook Up’s Compatibility

• Industry standard enzymatic and other detergents in diluted form. Do not use Isopropyl alcohol with the flush pump.

Unit Weight

• 9.4 lbs. (4.3 Kg)

Approvals

• CAN/CSA-C22.2 No. 61010-1-04
• UL Std. No. 61010-1 (2nd Edition)
