EndoFlate™ GI

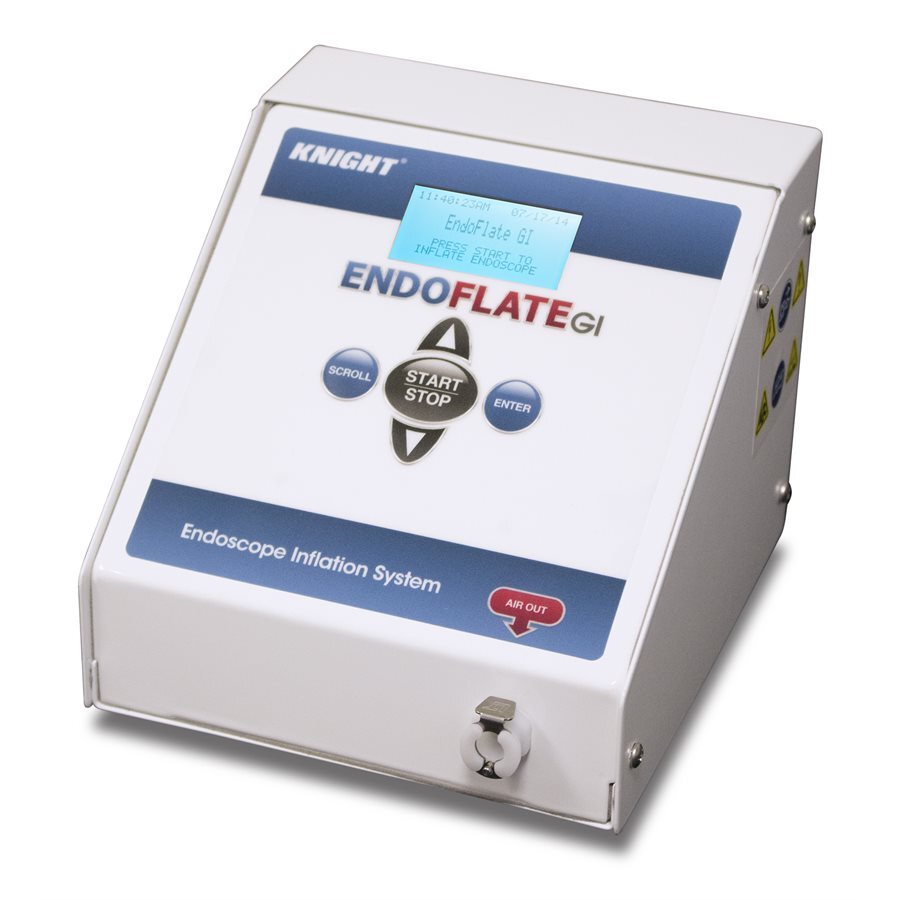

EndoFlate™ GI: Flexible Endoscope Inflation System

The Knight EndoFlate GI is an automated inflation system used to pressurize flexible endoscopes for leak testing.

EndoFlate provides an easy-to-read digital screen with a numerical pressure value, timer, pressure bar, and date/time.

A red screen indicator will notify the endoscopy technician of the liner’s failure to meet desired inflation pressure for an immersion leak test. In the event of a minor leak, EndoFlate can keep the scope inflated so technician can clean scope without risk of fluid ingress.

EndoFlate GI works with flexible endoscopes including Olympus, Pentax, Karl Storz, and Fujinon.

Dimensions

• 5.5” H X 6.1” Wx 6.75” D
• 14 cm X 15.5 cm x 17 cm

Case Rating

• IPXO

Inflation Test Pressure

• 1-5 psi (0.07-0.34 bar)

Power Supply/Voltage

• Wall Mount Type
• In: 110-240 VAC 1A 50-60 Hz
• Out: 12 VDC 1.5A

Unit Weight

• 3.6 lbs. (1.6 Kg)

Approvals

• CAN/CSA-C22.2 No. 61010-1-04
• UL Std. No. 61010-1 (2nd Edition)
• EN 61010-1:2010
