CleanGuard Series
Food and Beverage

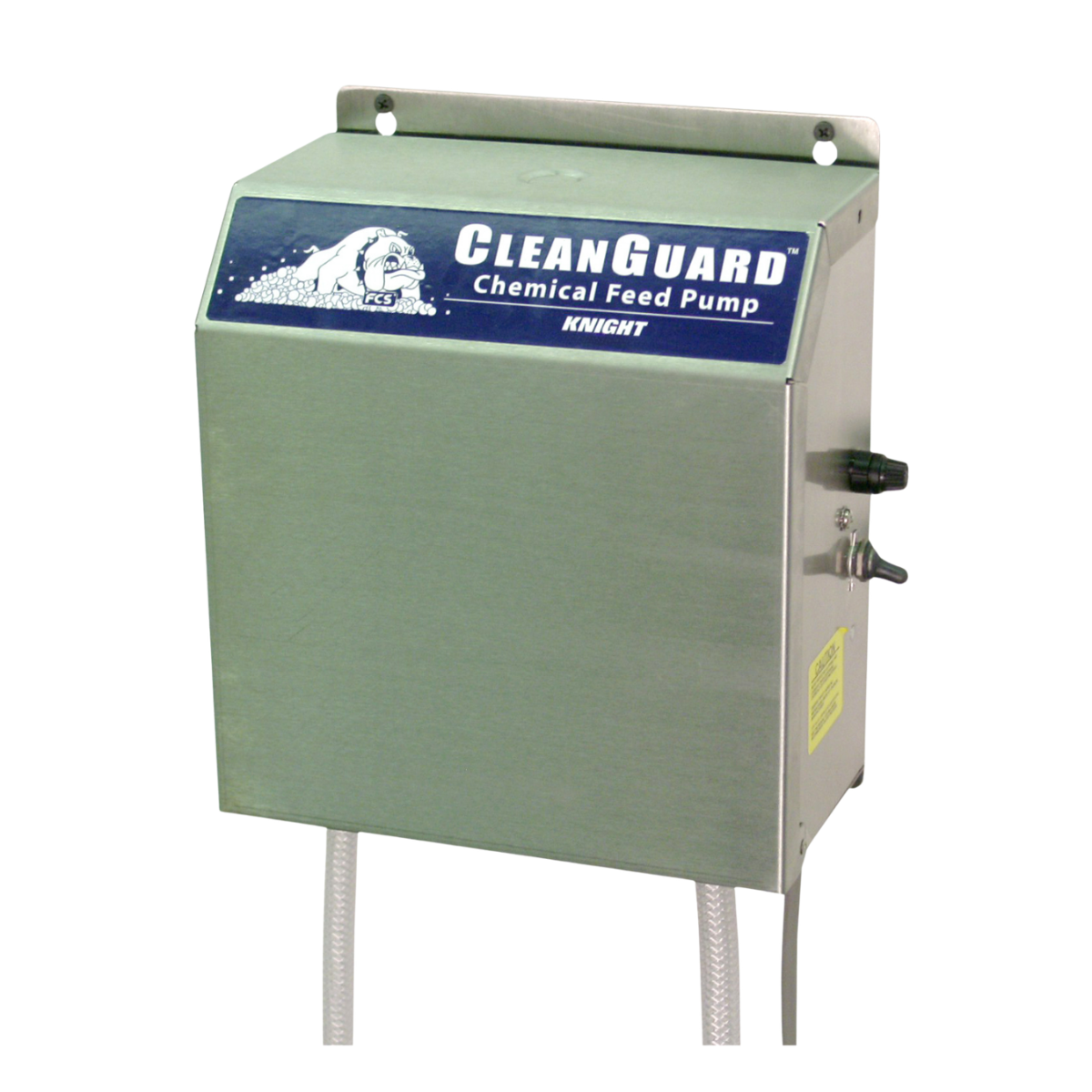

CleanGuard chemical pump is Knight's newest addition to Knight's line of extensive pumps. The CleanGuard is an electric diaphragm pump with flow rate of .4 or 1.5 or 3.2 gal/min. (1.5 or 5.7 or 12 liters/min.). CleanGuard's continuous duty rated motor can run on 115 VAC to 24 VAC power supply eliminating the need for expensive electrical installation cost.
- Quick release fittings
- 60 PSI pressure switch turns pump off/on
- Motor is internally sealed against moisture
- Quick disconnect electrical connection to pump
- Fuse protection with main power on-off switch
| Configurations | ||
| PART # | MODEL | DESCRIPTION |
| 7640636-01 | EDP-.4 E | CleanGuard “E” Electric Diaphragm Pump (.4 GPM) (1.5 LPM) w/ Stainless Steel Case, Power Switch, 70 PSI (4.83 bar), Fitting w/ EPDM Valve Seals and Diaphragm |
| 7640637-01 | EDP-.4 V | CleanGuard “E” Electric Diaphragm Pump (.4 GPM) (1.5 LPM) w/ Stainless Steel Case, PowerSwitch, 70 PSI (4.83 bar), Fitting w/ Viton Valve Seals and Diaphragm |
|
7640621-01 |
EDP-1.5 E |
CleanGuard "E" Electric Diaphragm Pump (1.5 GPM/5.7 LPM) w/ Stainless Steel Case, Power Switch, 70 PSI, Fittings w/ EPDM Seals and Diaphragm, 110V 60 Hz |
|
7640622-01 |
EDP-1.5 V |
CleanGuard "E" Electric Diaphragm Pump (1.5 GPM/5.7 LPM) w/ Stainless Steel Case, Power Switch, 70 PSI, Fittings w/ Viton Seals and Diaphragm, 110V 60 Hz |
| 7640623-01 | EDP-3.2 E | CleanGuard "E" Electric Diaphragm Pump (3.2 GPM/12.1 LPM) w/ Stainless Steel Case, Power Switch, 70 PSI, Fittings w/ EPDM Seals and Diaphragm, 110V 60 Hz |
| 7640624-01 | EDP-3.2 V | CleanGuard "E" Electric Diaphragm Pump (3.2 GPM/12.1 LPM) w/ Stainless Steel Case, Power Switch, 70 PSI, Fittings w/ Viton Seals and Diaphragm, 110V 60 Hz |
Product Line Details
- Quick release fittings
- 60 PSI pressure switch turns pump off/on
- Motor is internally sealed against moisture
- Quick disconnect electrical connection to pump
- Fuse protection with main power on-off switch
Technical Data
| Configurations | ||
| PART # | MODEL | DESCRIPTION |
| 7640636-01 | EDP-.4 E | CleanGuard “E” Electric Diaphragm Pump (.4 GPM) (1.5 LPM) w/ Stainless Steel Case, Power Switch, 70 PSI (4.83 bar), Fitting w/ EPDM Valve Seals and Diaphragm |
| 7640637-01 | EDP-.4 V | CleanGuard “E” Electric Diaphragm Pump (.4 GPM) (1.5 LPM) w/ Stainless Steel Case, PowerSwitch, 70 PSI (4.83 bar), Fitting w/ Viton Valve Seals and Diaphragm |
|
7640621-01 |
EDP-1.5 E |
CleanGuard "E" Electric Diaphragm Pump (1.5 GPM/5.7 LPM) w/ Stainless Steel Case, Power Switch, 70 PSI, Fittings w/ EPDM Seals and Diaphragm, 110V 60 Hz |
|
7640622-01 |
EDP-1.5 V |
CleanGuard "E" Electric Diaphragm Pump (1.5 GPM/5.7 LPM) w/ Stainless Steel Case, Power Switch, 70 PSI, Fittings w/ Viton Seals and Diaphragm, 110V 60 Hz |
| 7640623-01 | EDP-3.2 E | CleanGuard "E" Electric Diaphragm Pump (3.2 GPM/12.1 LPM) w/ Stainless Steel Case, Power Switch, 70 PSI, Fittings w/ EPDM Seals and Diaphragm, 110V 60 Hz |
| 7640624-01 | EDP-3.2 V | CleanGuard "E" Electric Diaphragm Pump (3.2 GPM/12.1 LPM) w/ Stainless Steel Case, Power Switch, 70 PSI, Fittings w/ Viton Seals and Diaphragm, 110V 60 Hz |
